光軸間距 10 mm | 光軸間距 20 mm | |||||||
光束數量 | 保護高度 | 總高度 | 規格型號 | 光束數量 | 保護高度 | 總高度 | 規格型號 | |
/ | / | / | / | 6 | 100 | 144 | SM-3C0620N1ZBB | |
8 | 70 | 109 | SM-3C0810N1ZBB | 8 | 140 | 184 | SM-3C0820N1ZBB | |
10 | 90 | 129 | SM-3C1010N1ZBB | 10 | 180 | 224 | SM-3C1020N1ZBB | |
12 | 110 | 149 | SM-3C1210N1ZBB | 12 | 220 | 264 | SM-3C1220N1ZBB | |
14 | 130 | 169 | SM-3C1410N1ZBB | 14 | 260 | 304 | SM-3C1420N1ZBB | |
16 | 150 | 189 | SM-3C1610N1ZBB | 16 | 300 | 344 | SM-3C1620N1ZBB | |
18 | 170 | 209 | SM-3C1810N1ZBB | 18 | 340 | 384 | SM-3C1820N1ZBB | |
20 | 190 | 229 | SM-3C2010N1ZBB | 20 | 380 | 424 | SM-3C2020N1ZBB | |
22 | 210 | 249 | SM-3C2210N1ZBB | 22 | 420 | 464 | SM-3C2220N1ZBB | |
24 | 230 | 269 | SM-3C2410N1ZBB | 24 | 460 | 504 | SM-3C2420N1ZBB | |
26 | 250 | 289 | SM-3C2610N1ZBB | 26 | 500 | 544 | SM-3C2620N1ZBB | |
28 | 270 | 309 | SM-3C2810N1ZBB | 28 | 540 | 584 | SM-3C2820N1ZBB | |
30 | 290 | 329 | SM-3C3010N1ZBB | 30 | 580 | 624 | SM-3C3020N1ZBB | |
... | ... | ... | ... | ... | ... | ... | ... | |
150 | 1490 | 1529 | SM-3C15010N1ZBB | 80 | 1580 | 1624 | SM-3C8020N1ZBB | |
光軸間距 40 mm | |||
光束數量 | 保護高度 | 總高度 | 規格型號 |
6 | 200 | 254 | SM-3C0640N1ZBB |
8 | 280 | 334 | SM-3C0840N1ZBB |
10 | 360 | 414 | SM-3C1040N1ZBB |
12 | 440 | 494 | SM-3C1240N1ZBB |
14 | 520 | 574 | SM-3C1440N1ZBB |
16 | 600 | 654 | SM-3C1640N1ZBB |
18 | 680 | 734 | SM-3C1840N1ZBB |
20 | 760 | 814 | SM-3C2040N1ZBB |
22 | 840 | 894 | SM-3C2240N1ZBB |
24 | 920 | 974 | SM-3C2440N1ZBB |
26 | 1000 | 1054 | SM-3C2640N1ZBB |
28 | 1080 | 1134 | SM-3C2840N1ZBB |
30 | 1160 | 1214 | SM-3C3040N1ZBB |
32 | 1240 | 1294 | SM-3C3240N1ZBB |
...... | ... | ... | ... |
50 | 1960 | 2014 | SM-3C5040N1ZBB |

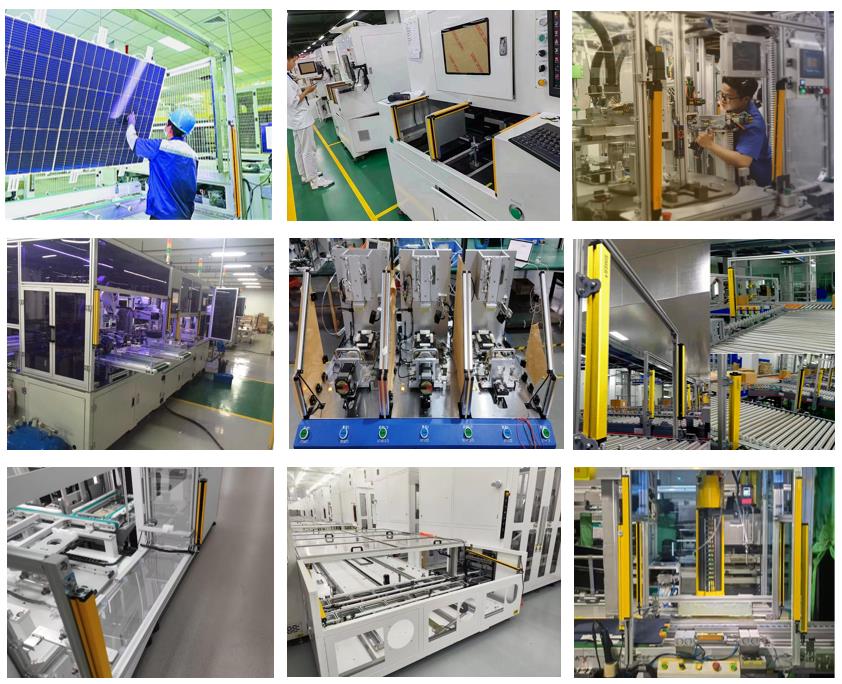

應用范圍：各種自動化設備、鍛壓機床、剪切機器、液壓機械、機器人、工業機械手、包裝設備、生產流水線、立體車庫及其它自動化設備，也可用于多面區域保護或防盜等。
