光軸間距 10 mm | 光軸間距 20 mm | |||||||
光束數量 | 保護高度 | 總高度 | 規格型號 | 光束數量 | 保護高度 | 總高度 | 規格型號 | |
/ | / | / | / | 4 | 60 | 128 | SM-1M0420N1CBB | |
/ | / | / | / | 6 | 100 | 153 | SM-1M0620N1CBB | |
8 | 70 | 128 | SM-1M0810N1CBB | 8 | 140 | 193 | SM-1M0820N1CBB | |
10 | 90 | 148 | SM-1M1010N1CBB | 10 | 180 | 233 | SM-1M1020N1CBB | |
12 | 110 | 168 | SM-1M1210N1CBB | 12 | 220 | 273 | SM-1M1220N1CBB | |
14 | 130 | 188 | SM-1M1410N1CBB | 14 | 260 | 313 | SM-1M1420N1CBB | |
16 | 150 | 208 | SM-1M1610N1CBB | 16 | 300 | 353 | SM-1M1620N1CBB | |
18 | 170 | 228 | SM-1M1810N1CBB | 18 | 340 | 393 | SM-1M1820N1CBB | |
20 | 190 | 248 | SM-1M2010N1CBB | 20 | 380 | 433 | SM-1M2020N1CBB | |
22 | 210 | 268 | SM-1M2210N1CBB | 22 | 420 | 473 | SM-1M2220N1CBB | |
24 | 230 | 288 | SM-1M2410N1CBB | 24 | 460 | 513 | SM-1M2420N1CBB | |
26 | 250 | 308 | SM-1M2610N1CBB | 26 | 500 | 553 | SM-1M2620N1CBB | |
28 | 270 | 328 | SM-1M2810N1CBB | 28 | 540 | 593 | SM-1M2820N1CBB | |
30 | 290 | 348 | SM-1M3010N1CBB | 30 | 580 | 633 | SM-1M3020N1CBB | |
... | ... | ... | ... | ... | ... | ... | ... | |
200 | 1990 | 2048 | SM-1M20010N1CBB | 120 | 2380 | 2433 | SM-1M12020N1CBB | |
光軸間距 40 mm | |||
光束數量 | 保護高度 | 總高度 | 規格型號 |
4 | 120 | 183 | SM-1M0440N1CBB |
6 | 200 | 263 | SM-1M0640N1CBB |
8 | 280 | 343 | SM-1M0840N1CBB |
10 | 360 | 423 | SM-1M1040N1CBB |
12 | 440 | 503 | SM-1M1240N1CBB |
14 | 520 | 583 | SM-1M1440N1CBB |
16 | 600 | 663 | SM-1M1640N1CBB |
18 | 680 | 743 | SM-1M1840N1CBB |
20 | 760 | 823 | SM-1M2040N1CBB |
22 | 840 | 903 | SM-1M2240N1CBB |
24 | 920 | 983 | SM-1M2440N1CBB |
26 | 1000 | 1063 | SM-1M2640N1CBB |
28 | 1080 | 1143 | SM-1M2840N1CBB |
30 | 1160 | 1223 | SM-1M3040N1CBB |
... | ... | ... | ... |
60 | 2360 | 2423 | SM-1M6040N1CBB |

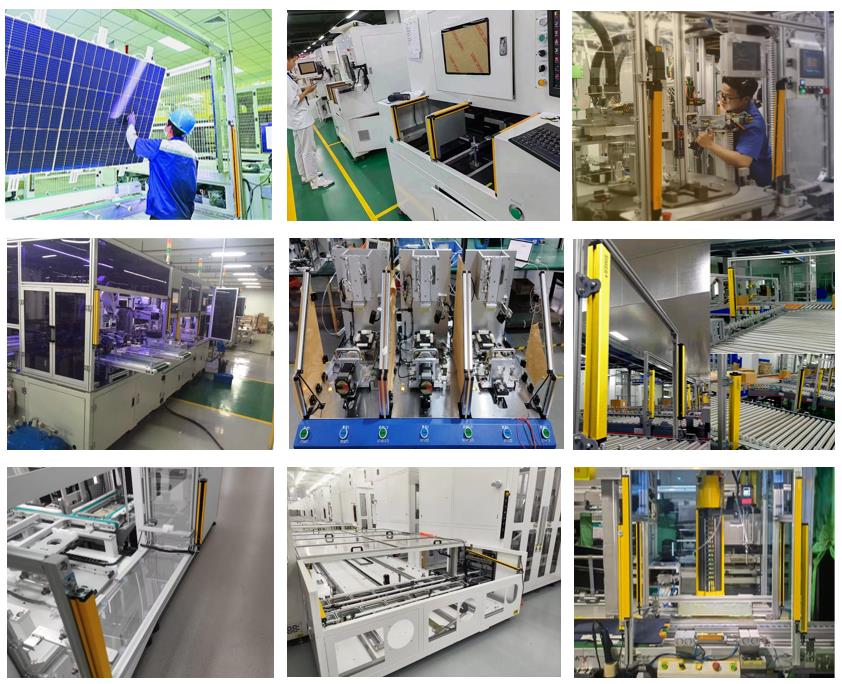

應用范圍：各種自動化設備、鍛壓機床、剪切機器、液壓機械、機器人、工業機械手、包裝設備、生產流水線、立體車庫及其它自動化設備，也可用于多面區域保護或防盜等。
